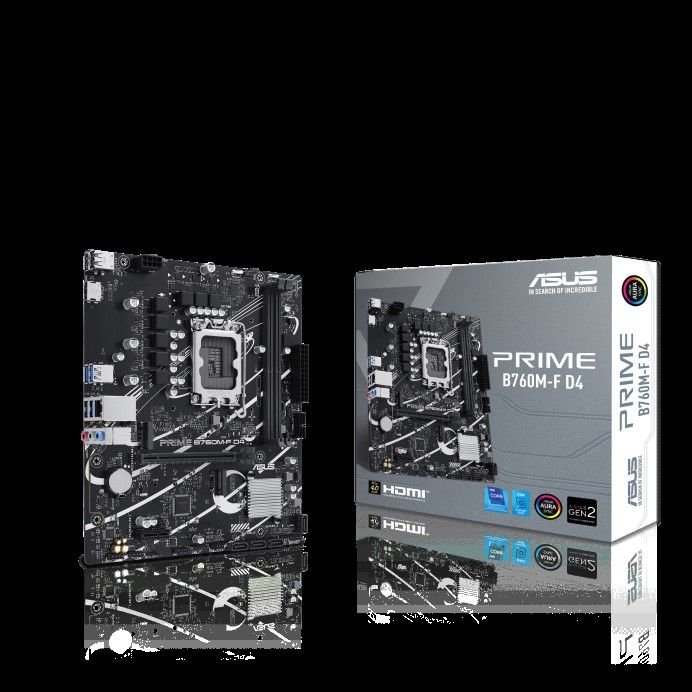

ASUS Prime B760M-F D4

Tình trạng: Còn hàng
Mã sản phẩm: Đang cập nhật
Thương hiệu: Asus
Dòng sản phẩm: Mainboard
2,050,000₫
Tiêu đề
  • Chia sẻ trên Facebook
  • Chia sẻ trên Google
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

ASUS PRIME B760M-F D4, an Intel® B760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 1Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync

  • Intel® LGA 1700 Socket:

     Ready for 14th, 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity:

     PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet and front USB 5Gbps support
  • Comprehensive Cooling:

     PCH heatsink, hybrid fan headers and Fan Xpert
  • Aura Sync RGB Lighting:

     Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
  • Two-Way AI Noise Cancelation

    Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Model

PRIME B760M-F D4

CPU

Intel® Socket LGA1700 for Intel® Core14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory

2 x DIMM slots, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics

1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@30Hz as specified in HDMI 1.4.

Expansion Slots

Intel® Core™ Processors (14th  & 13th & 12th Gen)


1 x PCIe 4.0 x16 slot

Intel® B760 Chipset


1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core Processors (14th  & 13th & 12th Gen)


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)


4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)*

Front USB (Total 5 ports)


1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features


- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related


1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power Related


1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage Related


2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB


1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III


- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O

ASUS Q-Design


- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS EZ DIY


- ProCool

ASUS Thermal Solution


- Aluminum heatsink design

Aura Sync


- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software


Armoury Crate
- Aura Sync
- Fan Xpert
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS


ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables


2 x SATA 6Gb/s cables

Miscellaneous


1 x I/O shield
2 x M.2 anchors

Documentation


1 x Quick start guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
