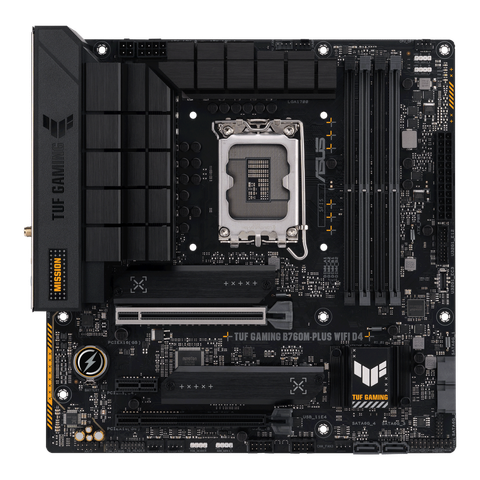

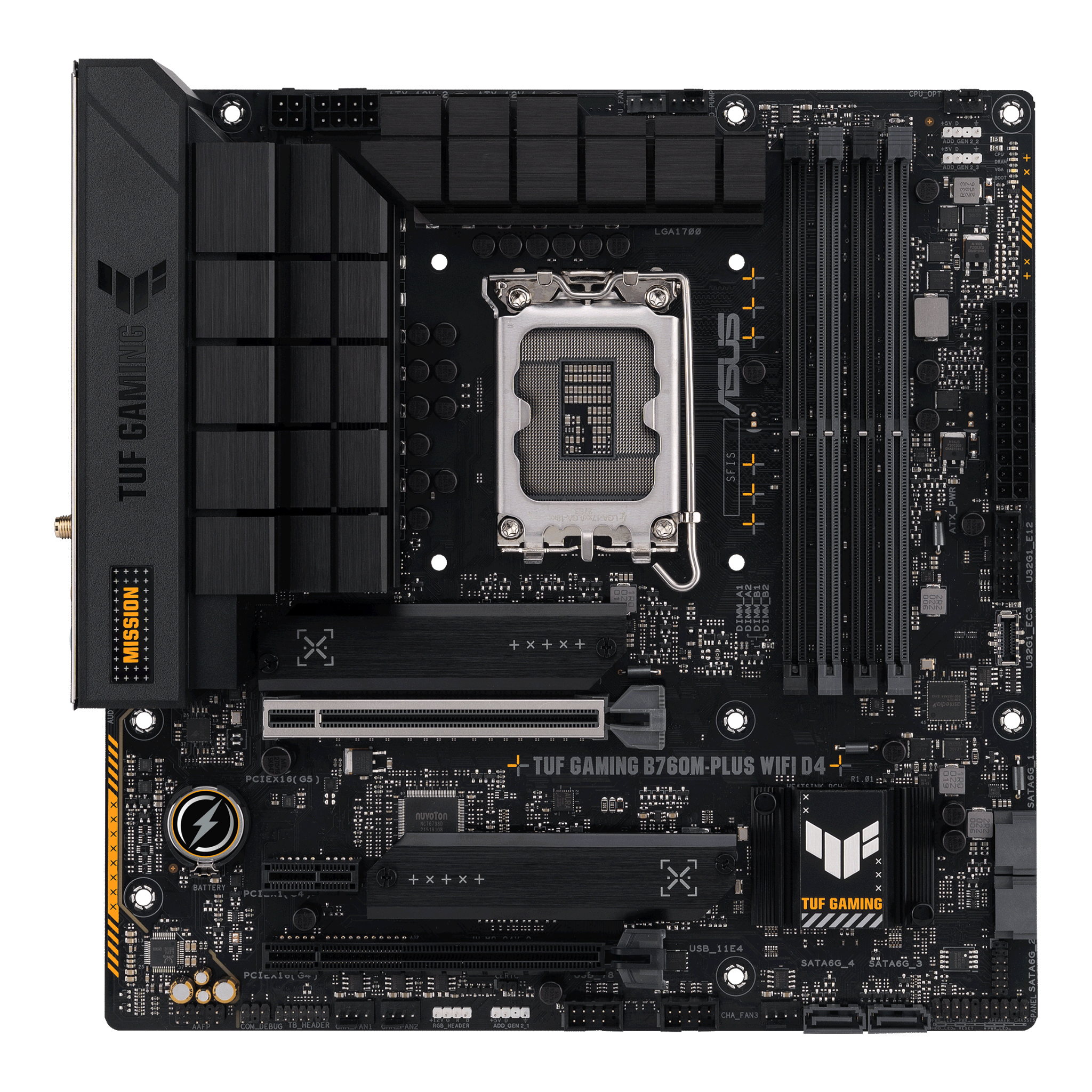

TUF GAMING B760M-PLUS WIFI D4
TUF GAMING B760M-PLUS WIFI D4 khai thác tất cả sức mạnh và tiềm năng từ bộ vi xử lý Intel® mới nhất và kết hợp với các tính năng giúp dàn máy của bạn sẵn sàng chinh phục các tựa game cùng độ bền đã được kiểm nghiệm. Được thiết kế với các linh kiện có độ bền chuẩn quân sự, giải pháp truyền tải điện năng được nâng cấp và hệ thống làm mát toàn diện, bo mạch chủ này vượt xa mong đợi với hiệu năng ổn định để chơi game liên tục. Các bo mạch chủ TUF GAMING cũng đã phải trải qua quá trình kiểm tra độ bền nghiêm ngặt để đảm bảo có thể xử lý các điều kiện mà các bo mạch chủ khác có thể gặp lỗi. Nói về thiết kế, mẫu bo mạch chủ nổi bật với phần logo dập nổi cùng các tản nhiệt vát theo khối hình học, phản ánh độ tin cậy và độ ổn định vốn là đặc trưng của dòng TUF GAMING.
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
TUF LANGuard
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Bảo vệ chống tăng quá áp
- SafeSlot Core+
- Lưng I/O bằng thép không gỉ
ASUS Q-Design
- Q-Latch M.2
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Bộ làm mát M.2
- Thiết kế tản nhiệt VRM
ASUS EZ DIY
- Bộ bảo vệ CPU Socket
- ProCool
- Tấm chắn I/O lắp đặt sẵn
- SafeDIMM
AURA Sync
- Đầu cắm Aura RGB
- Cổng RGB Addressable Gen 2
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Tiết kiệm năng lượng
- Khử ồn hai chiều chủ động
AI Suite 3
DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
Công nghệ xử lý âm thanh DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x TUF Gaming sticker
Documentation
1 x TUF Certification card
1 x User guide
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
